Socket PE 45° Elbow for Water Supply System
Socket PE 45° Elbow for Water Supply System
+
  • Socket PE 45° Elbow for Water Supply System
  • Socket PE 45° Elbow for Water Supply System

A 45° elbow is a type of plumbing or piping fitting used to change the direction of a pipe or duct at a 45-degree angle. It is commonly used in various applications, including HVAC systems, plumbing, and industrial piping.

Key Features of a 45° Elbow

1. Angle: As the name suggests, it changes the flow direction by 45 degrees.

2. Materials: 45° elbows can be made from various materials, including PVC, copper, stainless steel, and cast iron, depending on the application.

3. Size: They come in various sizes to fit different pipe diameters.

4. Applications: Commonly used in drainage systems, venting, and exhaust systems, as well as in water supply lines.

5. Connection Types: They can be designed for different types of connections, such as threaded, slip-on, or welded, depending on the specific requirements of the installation.

Benefits of Using a 45° Elbow

● Reduced Friction: Compared to sharper bends (like 90° elbows), a 45° elbow can reduce turbulence and friction in the flow, which can improve efficiency.

● Versatility: They can be used in a variety of configurations and applications, making them a versatile choice for many plumbing and piping systems.

● When selecting a 45° elbow for a project, it's important to consider the material, size, and type of connection to ensure compatibility with the existing system.

Technical parameter

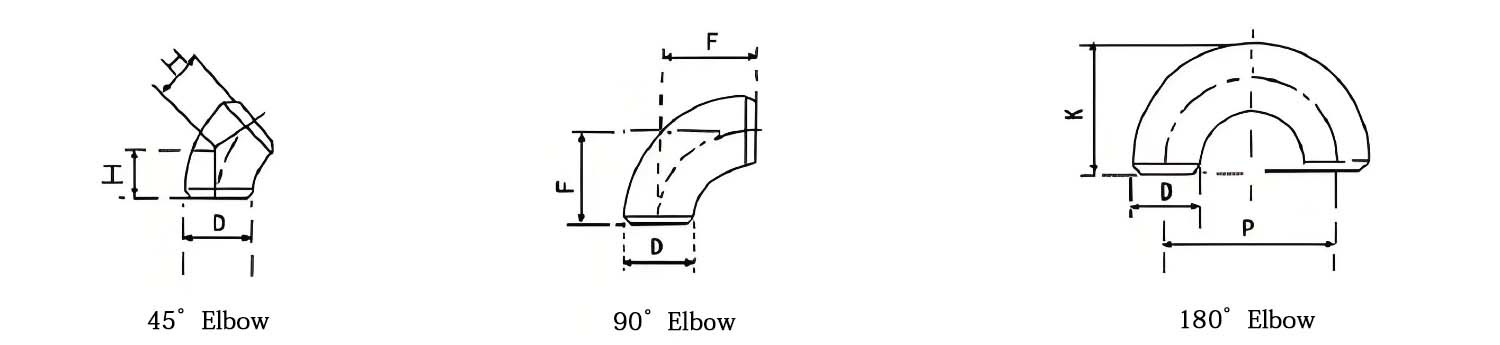

Nominal diameterEnd outer diameterCenter to End DimensionCenter to Center DimensionsBack to End Dimension
45 ° elbow90 ° elbow180 ° elbow180 ° elbow
Series ASeries BLong radiusLong radiusshort radiusLong radiusshort radiusLong radiusshort radius
15 21.3 18 16 38 176 148 1
20 26.9 25 16  38 176 151 1
25 33.7 32 16 38 25 76 51 56 41
32 42.4 38 20 48 32 95 64 70 52
40 48.3 45 24  57 38 114 76 83 81
50 60.3 57 32 76 51 152 102 106 100
65 76.1(73)76 40 95 64 191 127 132 121
80 88.9 89 47 114 76 229 152 159 159
100 114.3 108 63 152 102 305 203 210 197
125 139.7 133 79 190 127 381 254 262 237
150 168.3 159 95 229 152 457 305 313 313
200 219.1 219 126 305 203 610 406 414 391
250 273.0 273 158 381 254 762 508 518 467
300 323.9 325 189 457 305 914 610 619 533
350 355.6 377 221 533 356 1067 711 711 610
400 406.4 426 253 610 406 1219 813 813 686
450 457.0 478 284 686 457 1372 914 914 762
500 508.0 529 316 762 508 1524 1016 1016
550 559  343 838 559
600 610 630 381 914 610
650 660  405 991 660
700 711 720 438  1067 711
750 762  470  1143 762
800 813 820 502 1219 812
850 864  533  1295 864
900 914 920 565  1372 914
1000 1016 1020 632  1524 1016
1050 1067  663 1600 1067
1100 1118 1120 694  1676 1118
1200 1219 1220 758  1829 1219
1300 1321 -821 1981 1321
1400 1420 -883  2134 1420
1500 1524 -947  2286 1524
1600 1620 -1010 2438 1620
1700 1727 -1073  2591 1727
1800 1820 -1137  2743 1827
2000 2020 -1263  3048 2032
